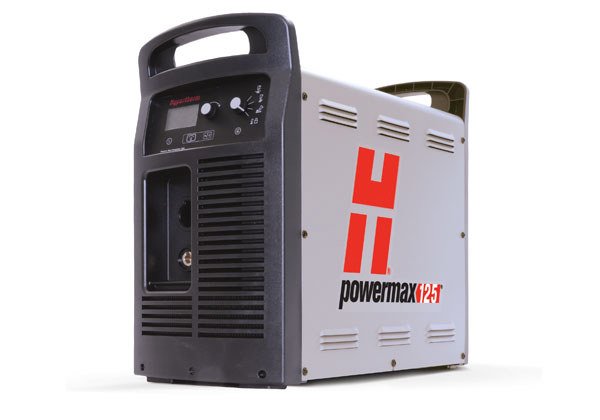

Powermax125 plasma cutter

Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1) mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.

System information

Applications

Drag cutting

For dragging the torch directly across the work piece

Fine feature cutting

For narrow kerf width with minimal dross and heat affected zone

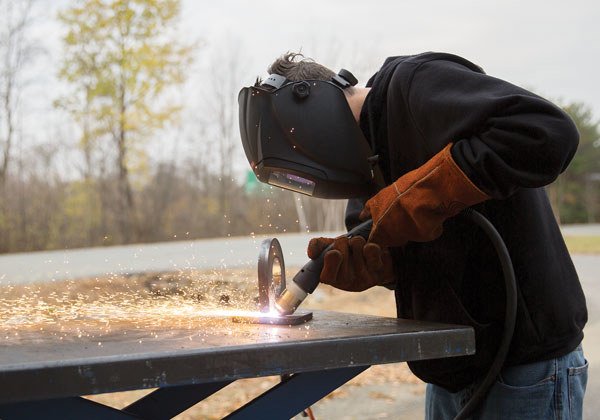

Flush cutting

For cutting closer to base materials using a 45 degree

Max control gouging

For precise metal removal, shallower gouge profiles and light metal washing

Max removal gouging

For aggressive metal removal, deep gouge profiles, and extreme metal washing

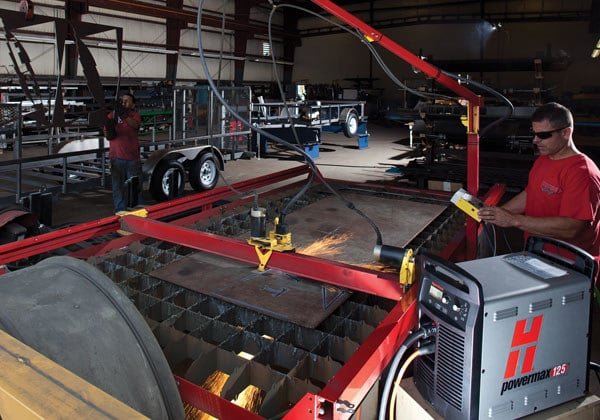

Mechanized cutting

For portable automation and table cutting

Unsupported Applications

Extended reach cutting

For improved visibility and accessibility when cutting in confined spaces

Extended reach gouging

For improved visibility and accessibility when gouging in confined spaces

Marking

For scoring, indicating part identification, hole or weld locations

Precision gouging

For spot and tack weld removal at very low output current (<25 A)

Benefits

Maximum productivity


  • Finish jobs faster with cut speeds five times greater than oxyfuel on 12 mm (1/2) mild steel
  • Superior cut and gouge quality let you spend less time on grinding and edge preparation
  • 100% duty cycle maximizes your cutting time
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

Easy-to-use for cutting and gouging



  • No need to change the air pressure Smart Sense technology ensures that it is always correctly set
  • SpringStart technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Lower operating costs


  • Consumable life up to four times longer than other systems in this amperage range
  • Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused

Built to handle tough jobs


  • Hypertherm Certified reliability ensures peak performance even in the harshest environments
  • Duramax Hyamp torches are designed for high-impact and heat resistance

Specifications

Cut capacity

Input voltages

CSA

480/600 V, 3-PH, 50/60 Hz



CE

400 V, 3-PH, 50/60 Hz



CCC

380 V, 3-PH, 50/60 Hz

Input current @ 21.9 kW

300/400/480/600 V, 38/36/31/24 A


Output current

30-125 A


Rated output voltage

175 VDC


Duty cycle @ 40° C (104° F)

100% @ 125 A


Open circuit voltage (OCV)

  • 400/600 CSA: 320 VDC
  • 380 V CCC: 290 VDC
  • 400 V CE: 305 VDC


Dimensions with handles

592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)


Weight with 7.6 m (25) torch

  • 480 V, 47,9 kg (105.7 lbs.)
  • 600 V, 47,5 kg (104.7 lbs.)
  • 380 V, 45,2 kg (99.6 lbs.)
  • 400 V, 48,9 kg (107.8 lbs.)


Gas supply

Clean, dry, oil-free air or nitrogen


Recommended gas inlet

flow rate/pressure

Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)

Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)


Input power cable length

3 m (10') *


Power supply type

Inverter-IGBT


Engine drive requirement

40 kW for full 125 A output


Certifications

CSA-certified for use in the Americas and Asia, except China.

CE, C-Tick, CU/GOST, Ukr, and Serbian for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.

CCC for use in China.


Warranty

Power supplies have a 3-year warranty and torches a 1-year warranty.


*No power cord on some CCC models.

Engine-driven generator operation

Engine drive rating

System output current

Performance (arc stretch)

40 kW

125 A

Full

30 kW

125 A

Limited

30 kW

100 A

Full

25 kW

100 A

Limited

22.5 kW

75 A

Full

20 kW

75 A

Limited

20 kW

60 A

Full

15 kW

60 A

Limited

12 kW

40 A

Full

10 kW

40 A

Limited

10 kW

30 A

Full

8 kW

30 A

Limited

Capacity

Input voltages

CSA

Cut speed



Cutting


Recommended

38 mm (1-1/2")

457 mm/min (18 ipm)



44 mm (1-3/4")

250 mm/min (10 ipm)

Severance (hand cutting)

57 mm (2-1/4")

125 mm/min (5 ipm)

Pierce *

25 mm (1")


*Pierce rating for handheld use or with automatic torch height control

Capacity

Metal removal rate

Groove profile



Gouging


Typical gouge

12,52 kg/hr

(27.6 lbs./hr)

4,3 mm7,9 mm D x 6,1 mm9,9 mm W

(0.170.31" D x 0.240.39" W)

Resources

Manuals and documents

Powermax125 CSA Domestic brochure

Last updated 10/10/2022


PDF (933KB)

Powermax125 CCC-CE brochure

Last updated 10/10/2022


PDF (820KB)

Powermax125 Operator Manual (Revision 3)

Last updated 11/18/2016


PDF (15.63MB)
