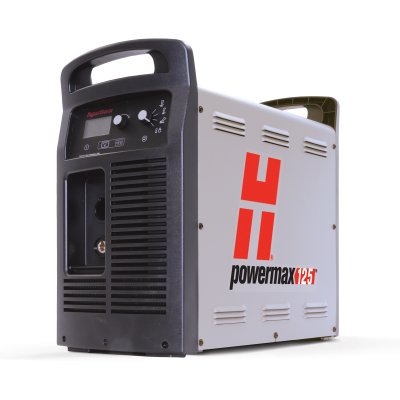

Powermax125 plasma cutter

Portable, heavy-duty plasma system that maximizes uptime and productivity in handheld and mechanized cutting and gouging operations.
279,000 THB
-
287,000 THB
279,000 THB
ราคาสมาชิก

0 THB
ราคาสมาชิก
0 THB

TORCH TYPE
HAND
MACHINE
จำนวน
รายละเอียดสินค้า

Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1) mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.

Benefits

Maximum productivity

  • Finish jobs faster with cut speeds five times greater than oxyfuel on 12 mm (1/2) mild steel
  • Superior cut and gouge quality let you spend less time on grinding and edge preparation
  • 100% duty cycle maximizes your cutting time
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

Easy-to-use for cutting and gouging

  • No need to change the air pressure Smart Sense technology ensures that it is always correctly set
  • SpringStart technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Lower operating costs

  • Consumable life up to four times longer than other systems in this amperage range
  • Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused

Built to handle tough jobs

  • Hypertherm Certified reliability ensures peak performance even in the harshest environments
  • Duramax Hyamp torches are designed for high-impact and heat resistance

Specifications

CapacityThicknessCut speed
 Cutting
Recommended38 mm (1-1/2")457 mm/min (18 ipm)

44 mm (1-3/4")250 mm/min (10 ipm)
Severance (hand cutting)57 mm (2-1/4")125 mm/min (5 ipm)
Pierce*25 mm (1")


General specifications

Input voltagesCSA480/600 V, 3-PH, 50/60 Hz

CE400 V, 3-PH, 50/60 Hz
 CCC380 V, 3-PH, 50/60 Hz
Input current @ 21.9 kW300/400/480/600 V, 38/36/31/24 A
Output current30-125 A
Rated output voltage175 VDC
Duty cycle @ 40° C (104° F)100% @ 125 A
Open circuit voltage (OCV)
  • 400/600 CSA: 320 VDC
  • 380 V CCC: 290 VDC
  • 400 V CE: 305 VDC
Dimensions with handles592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
Weight with 7.6 m (25')
torch
  • 480 V, 47,9 kg (105.7 lbs.)
  • 600 V, 47,5 kg (104.7 lbs.)
  • 380 V, 45,2 kg (99.6 lbs.)
  • 400 V, 48,9 kg (107.8 lbs.)
Gas supplyClean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate/pressure
Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)
Gouging: 212 l/min (450 scfh) @ 4.1 bar (60 psi)
Input power cable length3 m (10') *
Power supply typeInverter - IGBT
Engine drive requirement40 kW for full 125 A output
CertificationsCSA-certified for use in the Americas and Asia, except China.
CE, C-Tick, CU/GOST, Ukr, and Serbian for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.
WarrantyPower supplies have a 3-year warranty and torches a 1-year warranty.
