XPR170 plasma cutting system

The XPR170® is the latest system in the XPR® plasma product line. Delivering next generation X-Definition® processes from very thin up to mid-range thicknesses, the XPR170 expands plasma capabilities and opportunities in ways never before possible.


With unmatched X-Definition cut quality on mild steel, stainless steel and aluminum, XPR170 increases cut speed, dramatically improves productivity and slashes operating costs. New ease-of-use features and engineered system optimization make XPR easier to run with minimal operator intervention, while also ensuring optimal performance and unmatched reliability.

System information

Benefits

Industry-leading X-Definition cut quality



The XPR advances HyDefinition® cut quality by blending new technology with refined processes for next generation, X-Definition cutting on mild steel, stainless steel and aluminum.

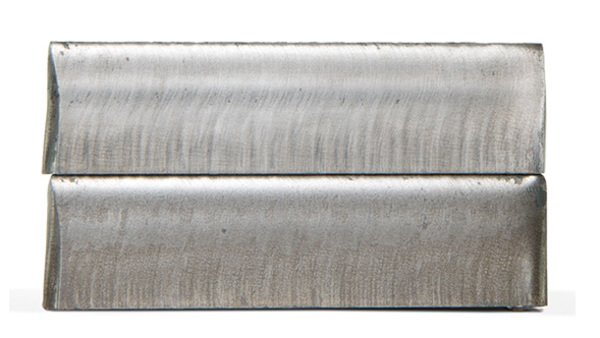

  • Consistent ISO range 2 results on thin mild steel

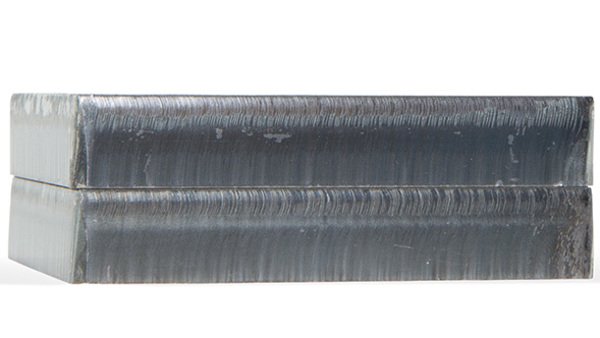

  • Extended ISO range 3 cut quality results compared with earlier plasma technology
  • Superior stainless steel cut quality across all thickness ranges

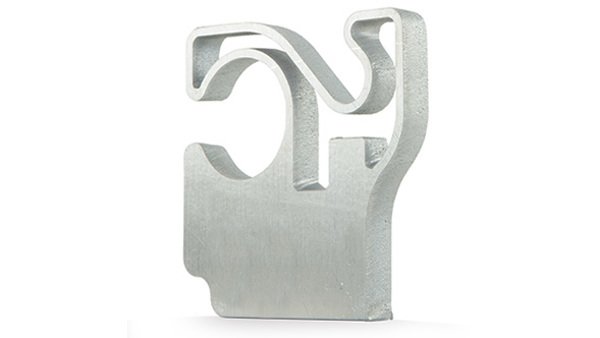

  • Superior results on aluminum using Vented Water Injection (VWI)

Optimized productivity and reduced operating costs



  • Significantly reduced operating costs than previous generation technology
  • Increased cut speeds on thicker materials
  • Dramatic improvement in consumable life on mild steel applications
  • Thicker piercing capability than competitive plasma systems

Engineered system optimization and ease of use


  • Ramp down error protection significantly increases realized consumable life
  • Automatic system monitoring and specific troubleshooting codes for improved maintenance and service prompts
  • EasyConnect torch lead and one hand torch-to-receptacle connection for fast and easy changeouts
  • QuickLock electrode for easy consumable replacement
  • WiFi in the power supply can connect to mobile devices and LAN for multiple system monitoring and service
  • Compatible with IoT

Advanced process control and delivery

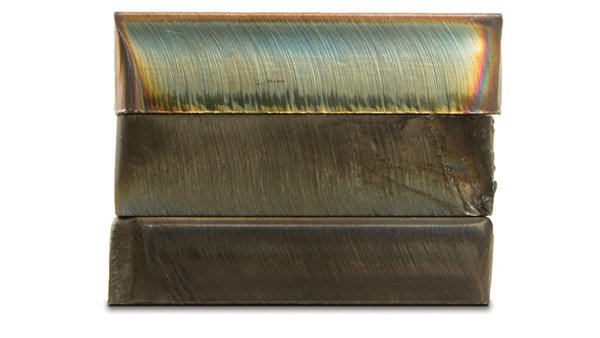

  • Four console options Core, CorePlus, Vented Water Injection (VWI) and OptiMix offer unmatched mild steel cut quality with each console delivering successively enhanced cutting capabilities on stainless steel and aluminum. All consoles can be fully controlled through the CNC for high productivity and ease of use.

Gas-connect console gases/fluids


Core

CorePlus

Vented Water Injection (VWI)

OptiMix

O2/N2/Air

X

X

X

X

Ar


X

X

X

F5/Ar/H2O



X

X

H2-N2-Ar mixing




X

Specifications

Maximum open-circuit voltage (U0)

360 VDC

Maximum output current

170 A

Maximum output power

35.7 kW

Output voltage

50 VDC-210 VDC

100% duty arc voltage

210 V

Duty cycle rating

100% at 35.7 kW, 40° C (104° F)

Operational ambient temperature range

-10° C40° C (14° F104° F)

Power factor

0.98 at 35.7 kW

Cooling

Forced air (Class F)

Insulation

Class H

EMC emissions classification (CE models only)

Class A

Lift points

Top lift eye weight rating 454 kg (1,000 lb.)


Bottom lift truck slots

Resources

Manuals and documents

.XPR Cut charts (Revision 6)

Last updated 06/01/2023

PDF (22.3MB)

XPR gas connect console selection guide

Last updated 06/01/2023

PDF (624KB)

XPR170 system brochure

Last updated 06/01/2023

PDF (613KB)
