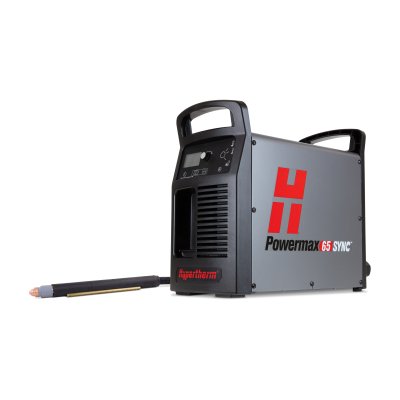

Powermax65 SYNC plasma cutter

SKU : 083368M

MACHINE

Professional-grade 20 mm (3/4″) plasma cutter provides automated process set-up and a revolutionary cartridge consumable platform for ease of use and optimized performance. Featuring a wide variety of torches and application capabilities for handheld and mechanized cutting and gouging.
140,000 THB
-
148,000 THB
148,000 THB
ราคาสมาชิก

0 THB
ราคาสมาชิก
0 THB

TORCH TYPE
HAND
MACHINE
จำนวน
รายละเอียดสินค้า

The Powermax65 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 20 mm (3/4). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.

Benefits

Easy to use

  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.


Minimize operation costs

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.


Maximize performance

  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.


Industry-leading reliability

  • SmartSYNC torches are engineered for rugged, industrial environments.
  • SpringStart technology ensures consistent starting and a more reliable torch.
  • Industry-leading reliability reduces production downtime.

Specifications

Cut capacity

CapacityThicknessCut speed
Recommended20 mm (3/4")500 mm/min (20 ipm)

25 mm (1")250 mm/min (10 ipm)
Severance (hand cutting)32 mm (1-1/4")125 mm/min (5 ipm)
Pierce*16 mm (5/8")


Maximum removal gouging

CapacityMetal removal rateGroove profile
Typical gouge4.0 kg (8.8 lbs.) per hour2.9 mm D x 6.4 mm W (0.11 D" x 0.25 W")


General specifications

Input voltages200480 V, 1-PH, 50/60 Hz
200600 V, 3-PH, 50/60 Hz
Kilowatt output9 kW
Input current200/208/240/480 V,
1-PH 52/50/44/22 A @ 9 kW
200/208/240/480/600 V,
3-PH 32/31/27/13/13 A @ 9 kW
Output current20-65 A
Rated output voltage139 VDC
Duty cycle @ 104° F50% @ 65 A, 230600 V, 1/3-PH
40% @ 65 A, 200208 V, 1/3-PH
100% @ 46 A, 230600 V, 1/3-PH
Open circuit voltage (OCV)295 VDC
Dimensions with handles483 mm D; 233 mm W; 430 mm H (19" D; 9.2" W; 17" H)
Weight w/7.6 m (25) torch29 kg (61 lbs.)
Gas supplyClean, dry, oil-free air or nitrogen
Optimum inlet gas pressure7.6-8.3 bar (110-120 psi)
Minimum inlet gas pressure5.2 bar (75 psi)
Recommended inlet gas flow rateCutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi)
Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)
Input power cable length3 m (10')
Power supply typeInverter IGBT
Engine drive requirement15 kW for full 65 A output
CertificationsCSA-certified for use in the Americas and Asia, except China
WarrantyPower supplies have a 3-year warranty and torches a 1-year warranty
