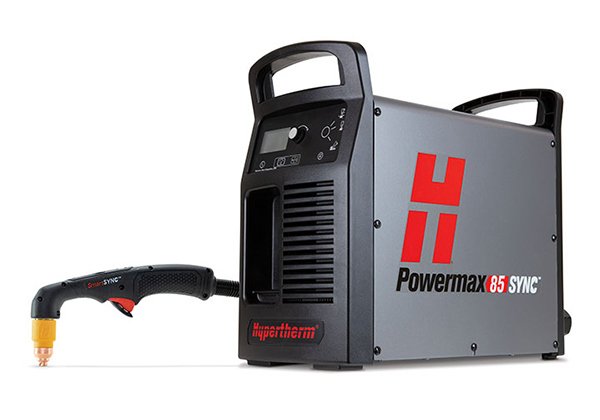

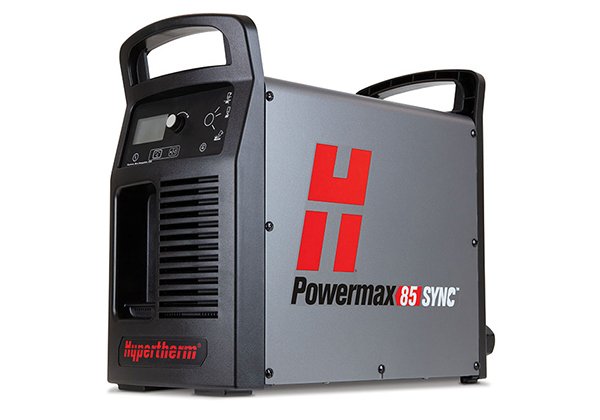

Powermax85 SYNC plasma cutter

The Powermax85 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 25 mm (1). Features automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax85 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.

System information


Drag cutting

For dragging the torch directly across the work piece

Extended reach cutting

For improved visibility and accessibility when cutting in confined spaces

Extended reach gouging

For improved visibility and accessibility when gouging in confined spaces

Fine feature cutting

For narrow kerf width with minimal dross and heat affected zone

Flush cutting

For cutting closer to base materials using a 45 degree

Max control gouging

For precise metal removal, shallower gouge profiles and light metal washing

Max removal gouging

For aggressive metal removal, deep gouge profiles, and extreme metal washing

Mechanized cutting

For portable automation and table cutting

Unsupported Applications


For scoring, indicating part identification, hole or weld locations

Precision gouging

For spot and tack weld removal at very low output current (<25 A)


Easy to use

  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups.
  • RFID-enabled SmartSYNC torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors.
  • End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge.
  • Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Minimize operation costs

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting.
  • Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
  • Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Maximize performance

  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging.
  • Optimized cartridge consumable design provides up to twice the life for handheld cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Time-saving hand torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Industry-leading reliability

  • SmartSYNC torches are engineered for rugged, industrial environments.
  • SpringStart technology ensures consistent starting and a more reliable torch.
  • Industry-leading reliability reduces production downtime.

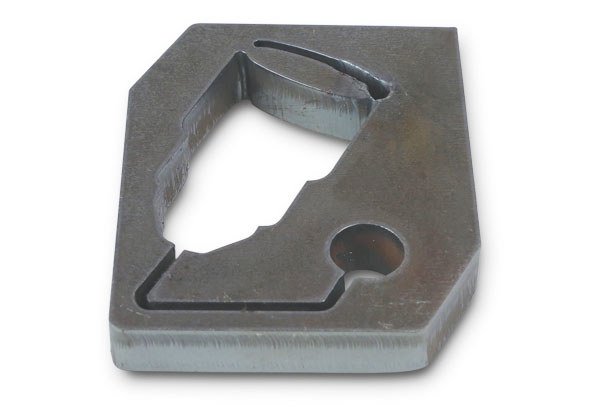

Cut capacity



Cut speed


25 mm (1")

500 mm/min (20 ipm)

32 mm (1-1/4")

250 mm/min (10 ipm)

Severance (hand cutting)

38 mm (1-1/2")

125 mm/min (5 ipm)


20 mm (3/4")

*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.

Maximum removal gouging


Metal removal rate

Groove profile

Typical gouge

8.2 kg (18.2 lbs.) per hour

3.5 mm D x 6.6 mm W (0.14" D x 0.26" W)

General specifications

Input voltages

200480 V, 1-PH, 50/60 Hz

200600 V, 3-PH, 50/60 Hz

Kilowatt output

12.2 kW

Input current


1-PH 70/68/58/29 A @ 12.2 kW

200/208/240/480/600 V,

3-PH 42/40/35/18/17 A @ 12.2 KW

Output current

25-85 A

Rated output voltage

143 VDC

Duty cycle @ 104° F

60% @ 85 A, 230600 V, 3-PH

60% @ 85 A, 480 V, 1-PH

50% @ 85 A 240 V, 1-PH

50% @ 85 A, 200208 V, 3-PH

40% @ 85 A, 200208 V, 1-PH

100% @ 66 A, 230600 V, 1/3-PH

Open circuit voltage (OCV)

305 VDC

Dimensions with handles

483 mm D; 233 mm W; 430 mm H (19" D; 9.2" W; 17" H)

Weight with 6.1 m (20') torch

32 kg (67 lbs.)

Gas supply

Clean, dry, oil-free air or nitrogen

Optimum inlet gas pressure

7.6-8.3 bar (110-120 psi)

Minimum inlet gas pressure

5.2 bar (75 psi)

Recommended inlet gas flow rate

Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi)

Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi)

Input power cable length

3 m (10')

Power supply type


Engine drive requirement

20kW for full 85 A output


CSA-certified for use in the Americas and Asia, except China


Power supplies have a 3-year warranty and torches a 1-year warranty
