Powermax 30XP

เครื่องตัดพลาสม่า รุ่น Powermax 30XP

     Powermax30 XP ที่มีประสิทธิภาพสูงในขนาดเล็กแบบพกพาแพคเกจ ด้วยสองในหนึ่งเดียวการออกแบบระบบให้ความสามารถกำลังแรงสูงสำหรับการตัดโลหะหนารวมทั้งวัสดุสิ้นเปลืองFineCut®สำหรับงานรายละเอียดการตัดโลหะบาง บวกกับกระเป๋าที่ให้กำหนดเองได้, แว่นตาสีเทาตัดถุงมือและปลั๊กอะแดปเตอร์สำหรับวงจร 120V หรือ 240V ระบบนี้ถูกออกแบบมาเพื่อให้คุณได้รับการตัดอย่างรวดเร็วและง่ายดาย

     The new Powermax30 XP delivers high performance in a small, portable package. With its two-in-one design, the system provides high-power capability for thick metal cutting, plus FineCut® consumables for detailed, thin metal cutting. Combined with a custom carry case, shaded glasses, cutting gloves and adapter plugs for 120V or 240V circuits, this system is designed to get you cutting quickly and easily.



System includes
  • Power supply, 15' (4.5 m) Duramax LT hand torch with standard consumables, 15' (4.5 m) work clamp
  • 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits
  • Operator and safety manuals
  • Consumable kit with 1 standard nozzle, 1 electrode, 1 FineCut nozzle and 1 FineCut deflector
  • Plastic carry case
  • Carrying strap
  • Leather gloves
  • Shade 5 glasses

 Operating data


 Capacity

ThicknessCut speed


Cutting

Recommended 10 mm (3/8") 500 mm/min (20 ipm)
  12 mm (1/2") 250 mm/min (10 ipm)
Severance 16 mm (5/8") 125 mm/min (5 ipm)



Specifications

Input voltages 120-240 V, 1-PH, 50/60 Hz
Input current @ 3.8 kW 120-240 V, 1-PH, 25-18.8 A
Output current 15-30 A
Rated output voltage 125 VDC
Duty cycle @ 40°C (104°F) 35%, 240 V
20%, 120 V
Open circuit voltage (OCV) 256 VDC
Dimensions with handles 356 mm (14.0") D; 168 mm (6.6") W; 305 mm (12.0") H
Weight w/ 4,5 m (15') torch CSA: 9.7 kg (21.4 lbs)
CE, CCC: 9.5 kg (21 lbs)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure
113.3 l/min (4 scfm) at 5.5 bar (80 psi)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT
Engine drive requirement 5.5 kW for full 30 A output
Certifications CSA-certified for use in the Americas and Asia, except China
CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.





 Consumable Parts

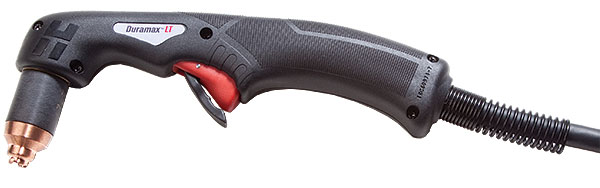

                                          Duramax LT torch™

  • Designed to withstand impact and heat.
  • Twice the consumable life* and 70% more efficient on average for lower cost of cutting.

* compared to Powermax30

Duramax LT consumables

  Shield/Deflector Retaining cap Nozzle Electrode Swirl ring
Standard Retaining cap - consumables Nozzle - consumables Swirl ring - consumables Electrode - consumables
FineCut Retaining cap - consumables Nozzle - consumables Swirl ring - consumables Electrode - consumables


Look for the yellow package.



Consumable typeTorch typeAmperageShield/DeflectorRetaining capNozzleElectrodeSwirl ring
Drag cutting Hand 30 420116 420114 420118 * 420120 420211
FineCut Hand 30 420115 420117 **



* Standard nozzle and electrode kit 428243 also available containing a quantity of 2 electrodes (420120) and 2 standard nozzles (420118).
** FineCut nozzle and electrode kit 428244 also available containing a quantity of 2 electrodes (420120) and 2 FineCut nozzles (420117).

HyAccess consumables

For more information on HyAccess consumables, visit the

Retaining cap Nozzle Electrode Swirl ring
